The Most Ignored Component on Your Guitar
Ask a guitarist what they'd upgrade first and you'll hear pickups, tuners, nut, bridge — all valid answers. But almost nobody says the output jack. It's the last thing players think about, and yet it's the one component that every single signal from your guitar passes through before it reaches your amp.
A failing or low-quality jack socket is responsible for more crackles, dropouts, and "is it the cable or the guitar?" moments than almost any other component. And for decades, the industry has been fitting the same basic design — a design that hasn't fundamentally changed since the 1950s.
Enter the Pure Tone Jack. Here's why it's one of the most worthwhile upgrades you can make to any electric guitar.
The Standard Jack Socket: A Design Frozen in Time
The conventional mono output jack — the kind fitted to the vast majority of electric guitars from budget to boutique — is a simple spring-contact design. A single contact tab grips the tip of your jack plug, and a separate tab makes contact with the sleeve (ground). That's it. One contact point per conductor.
This design works. It's been working for 70+ years. But it has well-documented weaknesses:
- Single contact point — All signal and ground passes through one small contact tab per conductor. If that tab loses tension, corrodes, or gets slightly bent, you get intermittent signal loss.
- Contact tab fatigue — The spring tension in the contact tab weakens over time with repeated plug insertion and removal. Eventually the tab doesn't grip the jack plug firmly enough, leading to crackle and dropout.
- Oxidisation — The contact surface oxidises with exposure to air and moisture, increasing resistance and degrading signal quality.
- Mechanical loosening — Standard jacks are notorious for working loose in the guitar body over time, especially on Les Paul-style side-mounted jacks. A loose jack means a moving ground connection — the source of countless mysterious crackles.
For a component that handles 100% of your guitar's output signal, these are significant compromises.
The Pure Tone Jack: What Makes It Different

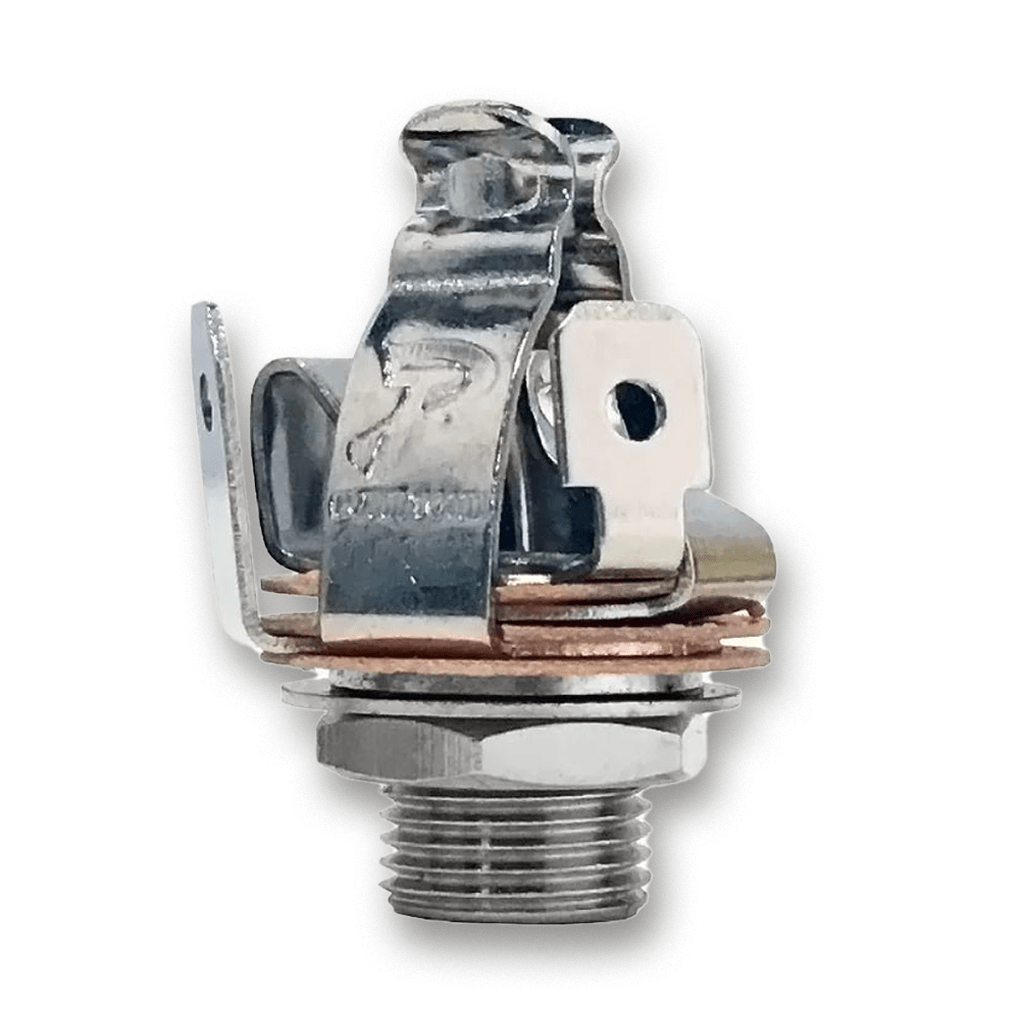

The Pure Tone Multi-Contact Output Jack was designed specifically to address the shortcomings of the standard jack. The key innovation is in the name: multiple contact points.
Where a standard jack has one contact tab per conductor, the Pure Tone has two contact points for both the tip (signal) and the sleeve (ground) — four contact points in total. This seemingly simple change has a cascade of practical benefits.
Dual Contact Points: Why It Matters
With two contact points gripping the tip and two gripping the sleeve, the Pure Tone jack maintains a secure, low-resistance connection even if one contact point loses tension or develops slight oxidisation. The redundancy means the connection is far more reliable under real-world conditions — repeated plugging and unplugging, temperature changes, humidity, and the general abuse that gigging guitars endure.
Better Signal Integrity
More contact points means lower contact resistance. Lower contact resistance means your signal passes through with less impedance and less degradation. In practical terms, this translates to a cleaner, more consistent signal — particularly noticeable in the high frequencies, which are most susceptible to signal loss through poor connections.
Many players report that installing a Pure Tone jack results in a slightly brighter, more open sound — not because the jack is adding anything, but because it's losing less of what the pickups are producing.
Longer Service Life
Because the contact load is shared across two tabs rather than one, each individual tab experiences less mechanical stress with every plug insertion. The spring tension lasts longer, and the jack maintains a firm grip on the plug for far more plug/unplug cycles than a standard jack.
Reduced Crackle and Dropout
The most immediately noticeable benefit for most players is the elimination of the intermittent crackle and dropout that plagues guitars with worn standard jacks. If you've ever had a guitar that crackles when you move the cable, or cuts out unless the plug is held at a specific angle, a Pure Tone jack will almost certainly solve the problem — and prevent it from recurring.
Installation: Is It a Drop-In Replacement?
For the vast majority of guitars, yes. The Pure Tone jack is designed to fit standard jack cup sizes and uses the same wiring connections as a conventional jack. For most Stratocaster, Telecaster, Les Paul, and similar-format guitars, it's a straightforward swap that any competent tech can complete in under 30 minutes — and many players with basic soldering skills do it themselves.
The only caveat is on guitars with very tight or non-standard jack routing, where the slightly larger body of the Pure Tone jack may require minor modification. Worth checking before you order if you have an unusual instrument.
The Cost Argument: Best Value Upgrade on the Market?
Pure Tone jacks retail for around £10–£15. Factor in a basic installation charge if you're not doing it yourself, and you're looking at a total outlay of £25–£40 to meaningfully improve the reliability and signal integrity of any electric guitar.
Compare that to a pickup swap (£80–£300+), a new nut (£40–£100 fitted), or a refret (£200+), and the Pure Tone jack is arguably the highest return-on-investment upgrade available. It won't change your tone dramatically — it's not supposed to — but it will ensure that the tone you have gets to your amp intact, every time.
Who Should Fit a Pure Tone Jack?
Honestly? Almost anyone with an electric guitar. But it's particularly valuable for:
- Gigging musicians — Reliability on stage is non-negotiable. A crackly jack at the wrong moment is a nightmare.
- Players with older guitars — Standard jacks on vintage and vintage-style guitars are often decades old and well past their best.
- Anyone experiencing intermittent crackle or dropout — Before you start chasing gremlins through your signal chain, replace the jack. It's the most common culprit.
- Players who change guitars frequently — More plug/unplug cycles means faster wear on standard jacks.
The Bottom Line
The standard output jack has served the guitar industry faithfully for over 70 years. But "good enough" and "best available" aren't the same thing. The Pure Tone Multi-Contact Jack is a genuine engineering improvement on a component that was overdue for one — and at the price point it sits at, there's very little reason not to fit one.
