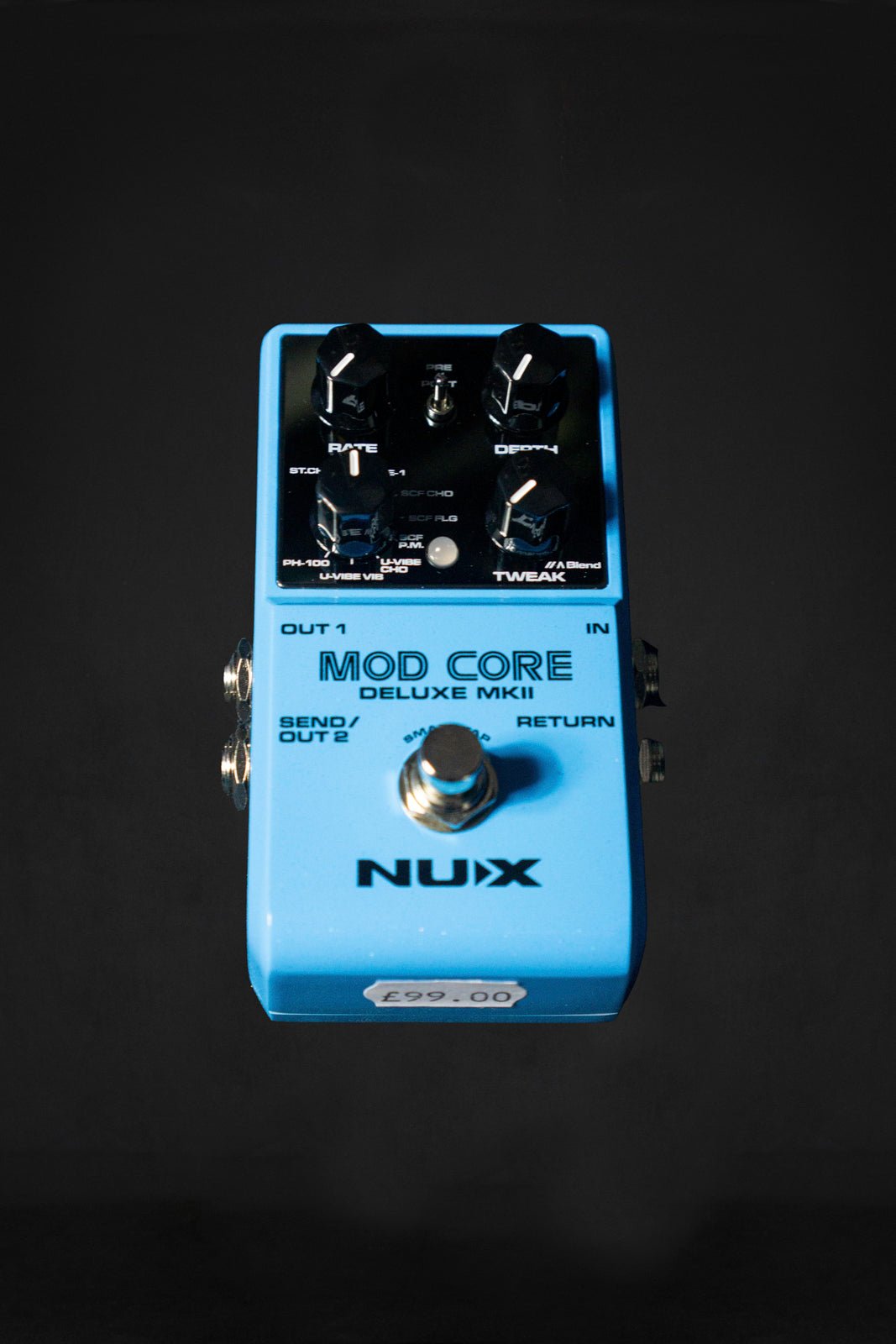

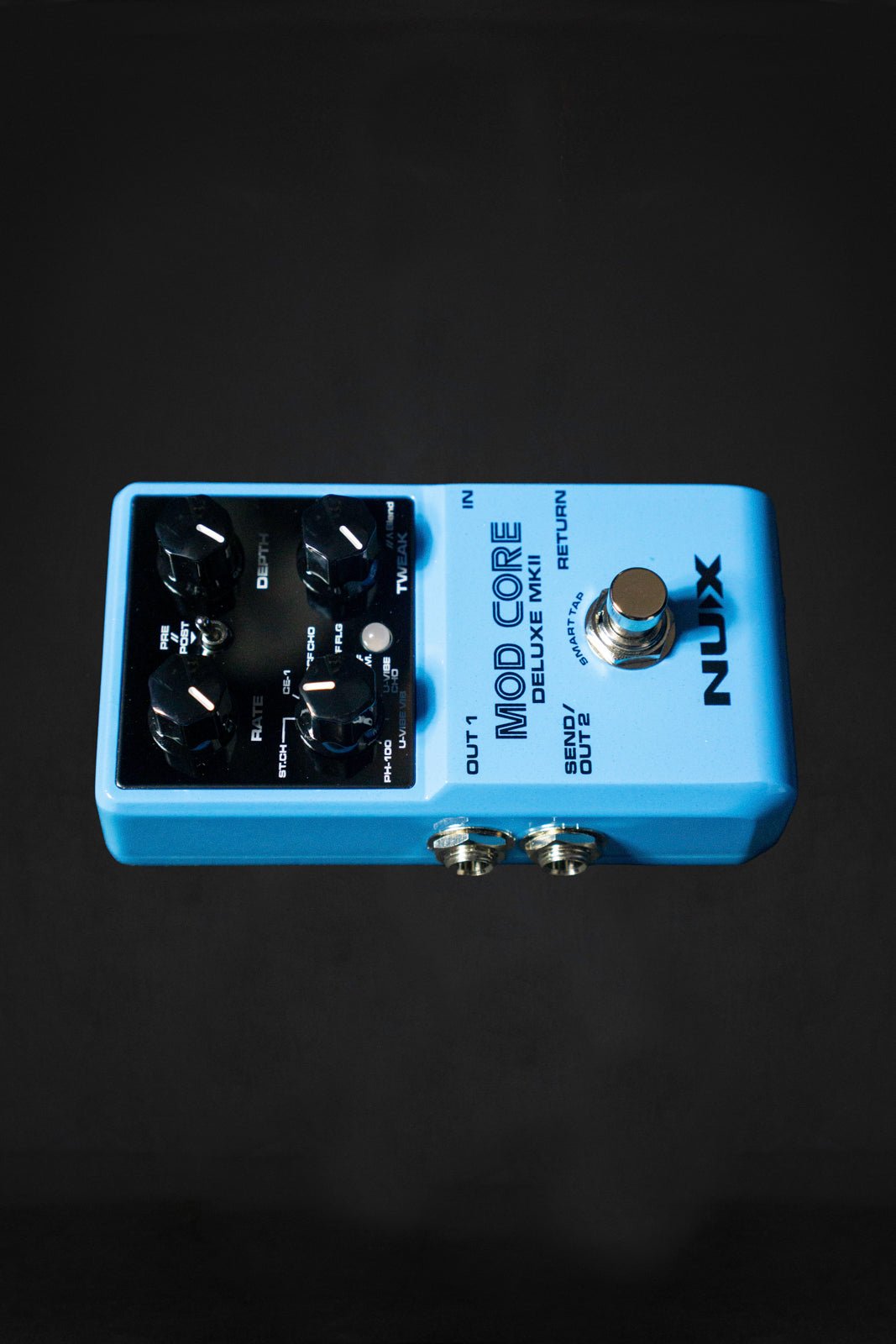

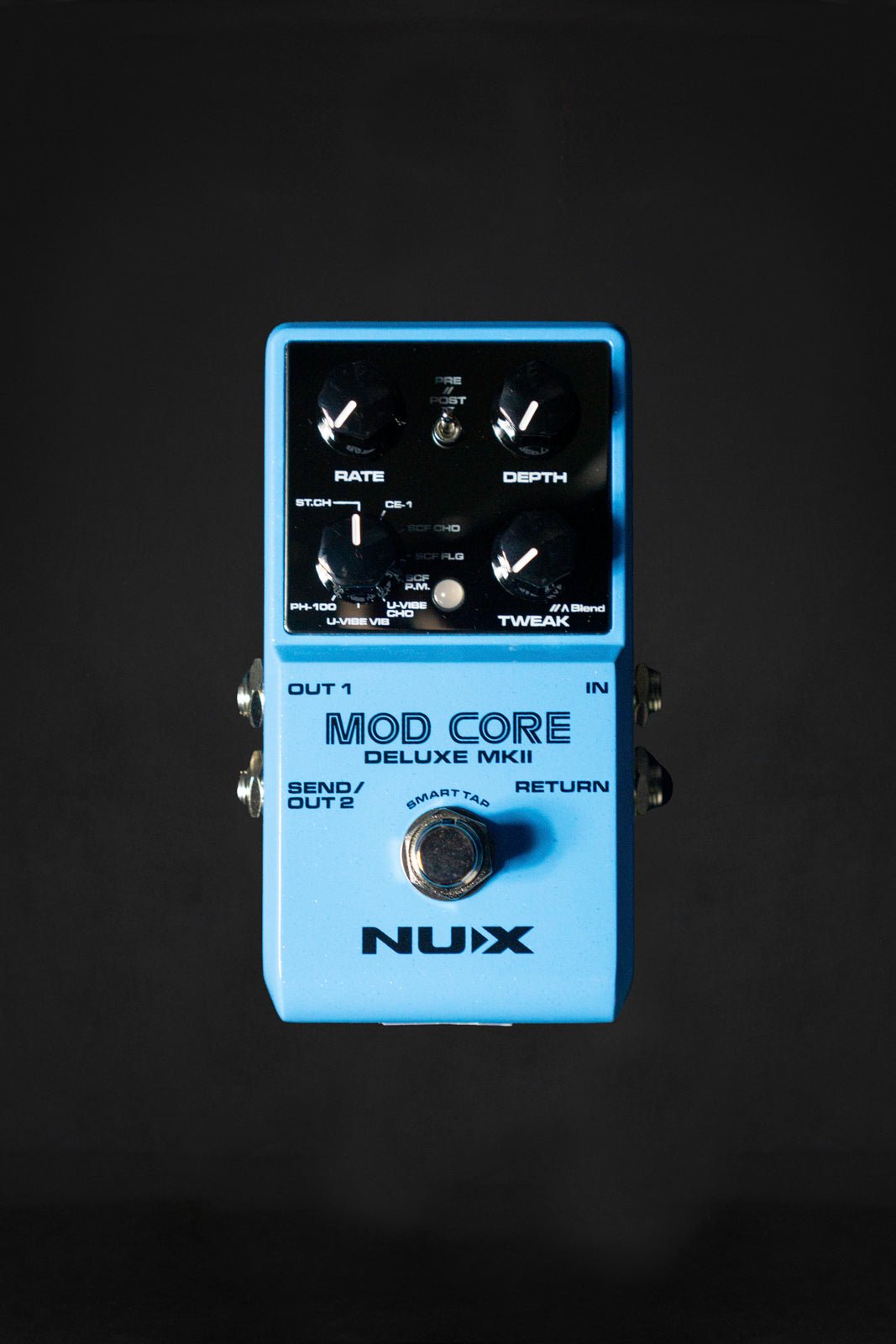

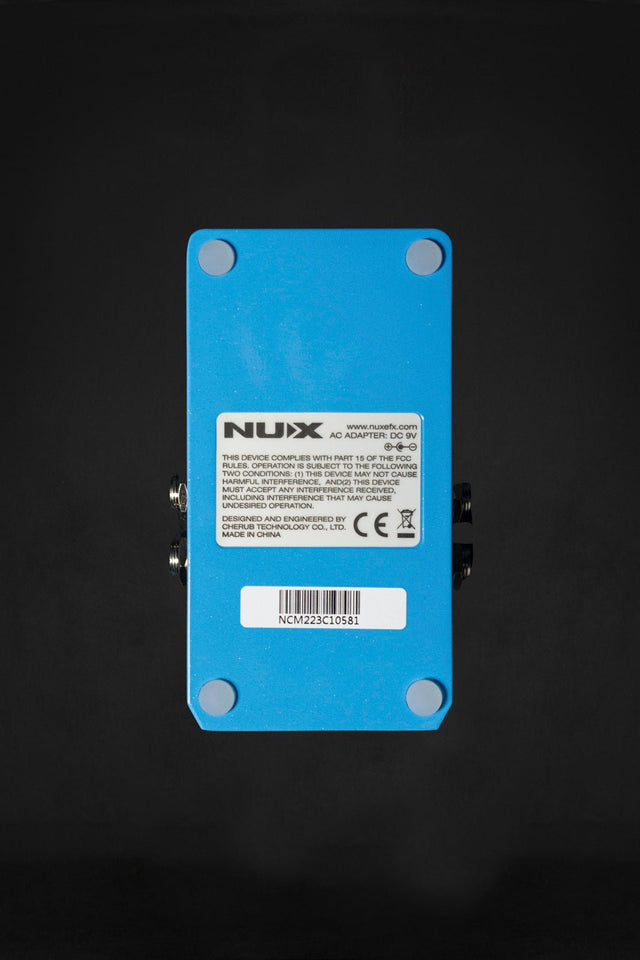

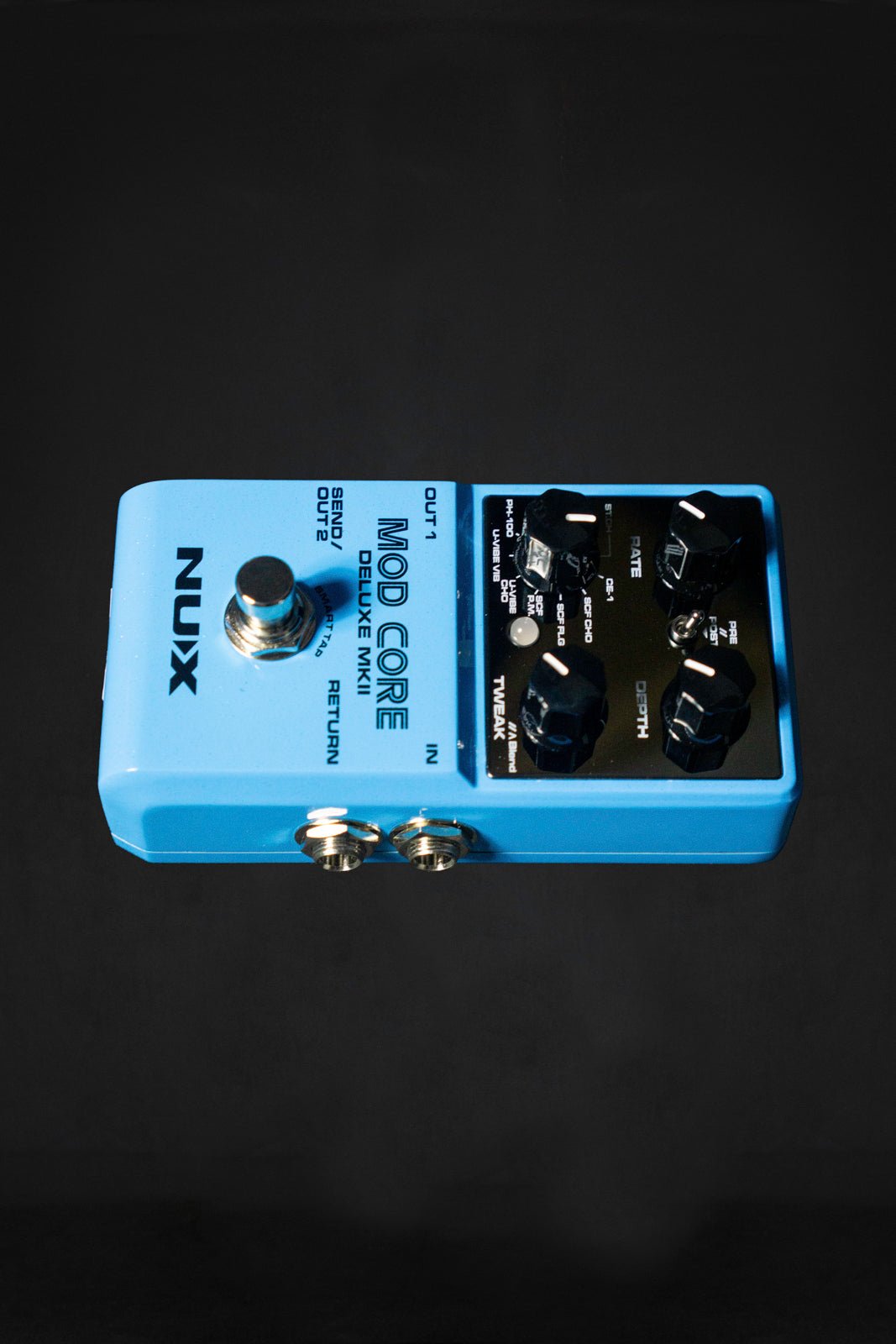

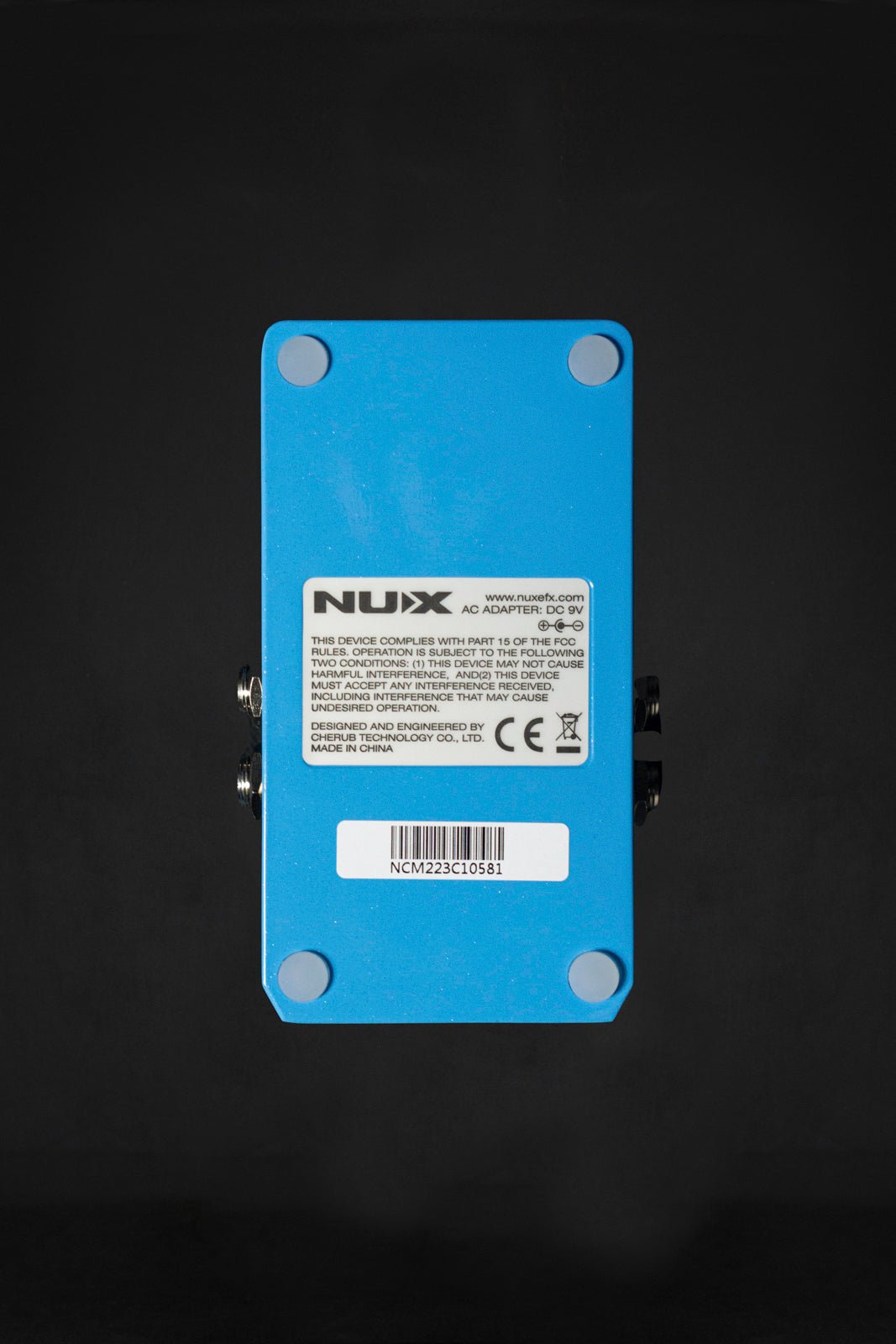

NU-X Mod Core Deluxe Mk.2 Modulation Pedal
NU-X Mod Core Deluxe Mk.2 Modulation Pedal is backordered and will ship as soon as it is back in stock.
Delivery and Shipping
Delivery and Shipping
All instruments are passed through our workshop prior to shipping.
This includes a 25 point Q.C. check and setup to your spesifcation.
This means it can take anything up to 2 weeks to recieve your instrument from date of purchase.
All shipping is done via Royal Mail & Parcelforce. Tracking is provided once shipped.
Our Climate Commitment
Our Climate Commitment
We're a fully carbon neutral business!
We've planted over 11,000 saplings locally on Dartmoor! No overseas planting, just right on our doorstep.
We've planted a variety of native hardwoods.
Not only this but we also support Moor Trees and their ambition to rewild Dartmoor.
Finance Solutions
Finance Solutions
We can offer multiple options with very high acceptance rates with either of our partners; Klarna or Snap Finance.
Klarna
- Pay in 30 days
- Split into 3 monthly installments
Snap Finance
- 11 Month interest free
- Up to 48 month intrest bearing
Description
Description
Evolving from the popular Mod Core Deluxe pedal, this mkII version has new effect models, signal routing options and editing features. A choice of 8 modulation models, ranging from chorus to phasing and vibrato, with Rate and Depth controls and additional Tweak control to adjust a third parameter specific to each effect and a further Blend adjustment in Alt mode. The rate can also be adjusted using a Tap Tempo function of the main footswitch. Mod Core Deluxe mkII has routing options for mono out, stereo out or mono with a send/return loop. When using the loop, there are 3 routing options for pre, parallel and post-effect placement. If you have space for just one mod effect on your board, the Mod Core Deluxe mkII offers a choice of 8 high-quality pedals in a single compact stompbox format.
- 8 distinct modulation effect models
- Analog dry signal path for low noise and zero latency
- Mono or stereo output
- Built-in send-return loop
- 4 paramter control for effect settings
- USB-C for firmware updates
Hear it Here
Our Thoughts
Our Thoughts
Specs
Specs
- Power supply: 9Vdc (PP3) battery or optional power adaptor
- DC input connection: DC5521 jack (for optional adaptor - pin-negative)
- Current consumption: <120mA
- Controls: Rate, Depth, Tweak & Mod type
- Modes: ST.CH, CE-1, SCF CHO, SCF FLG, SCF PM, U-VIBE CHO, U-VIBE VIB, PH-100
- Inputs: Instrument in & Loop return (6.3mm mono jack)
- Outputs: Out1 & Out2/Loop send (6.3mm mono jack)
- Tempo range: 50-200 bpm
- Sampling format: 48kHz, 24-bit
- Input impedance: 1M ohm
- Output impedance: 1k ohm
- Dynamic range: 104dB
- Dimensions: 122 x 72 x 47mm
- Weight: 270g
