NU-X Voodoo Vibe Mini Uni-Vibe Pedal – Vibe & Chorus Modes
NU-X Voodoo Vibe Mini Uni-Vibe Pedal – Vibe & Chorus Modes is backordered and will ship as soon as it is back in stock.
Description
Description

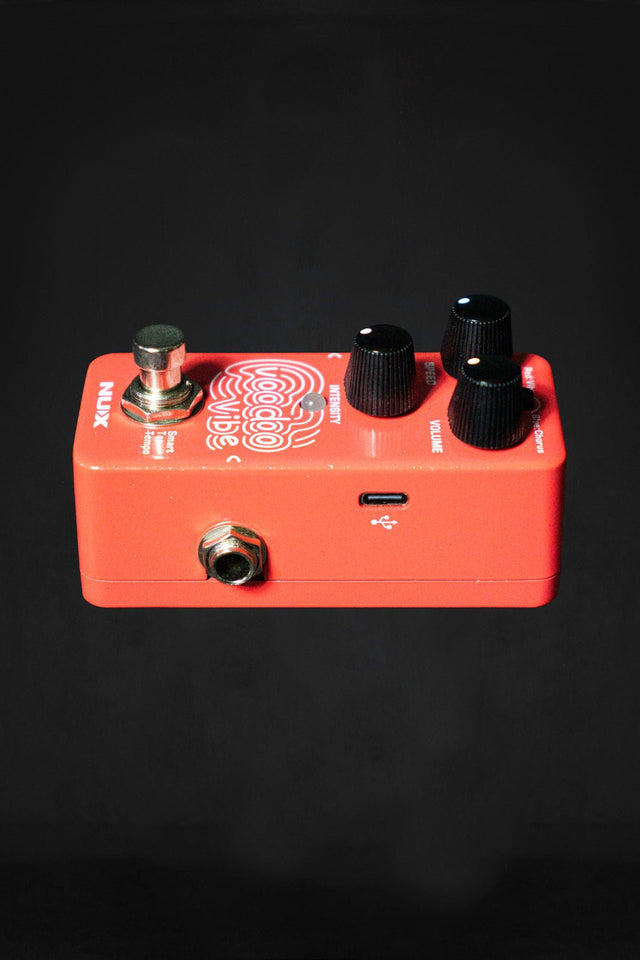

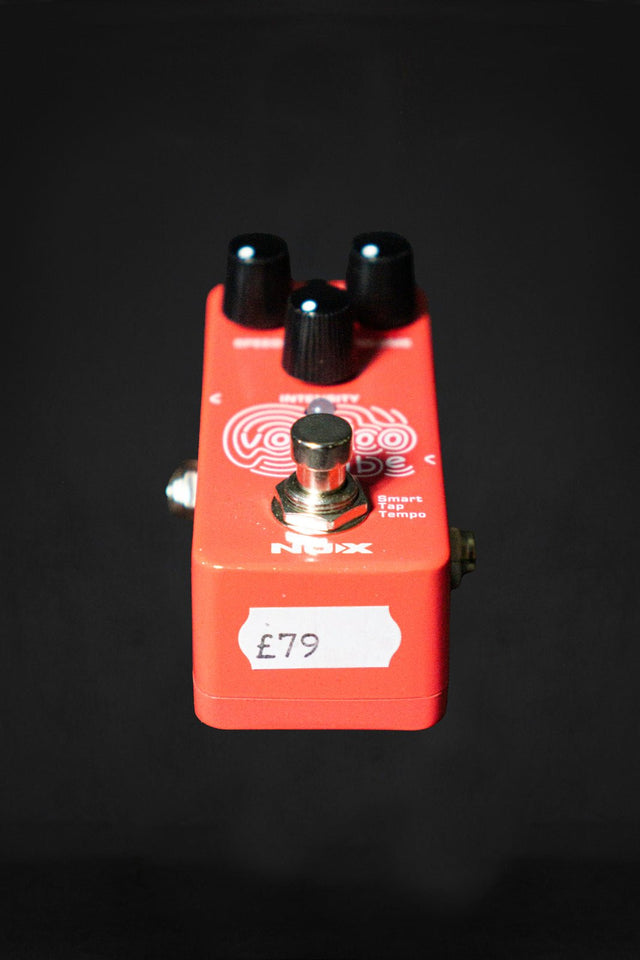

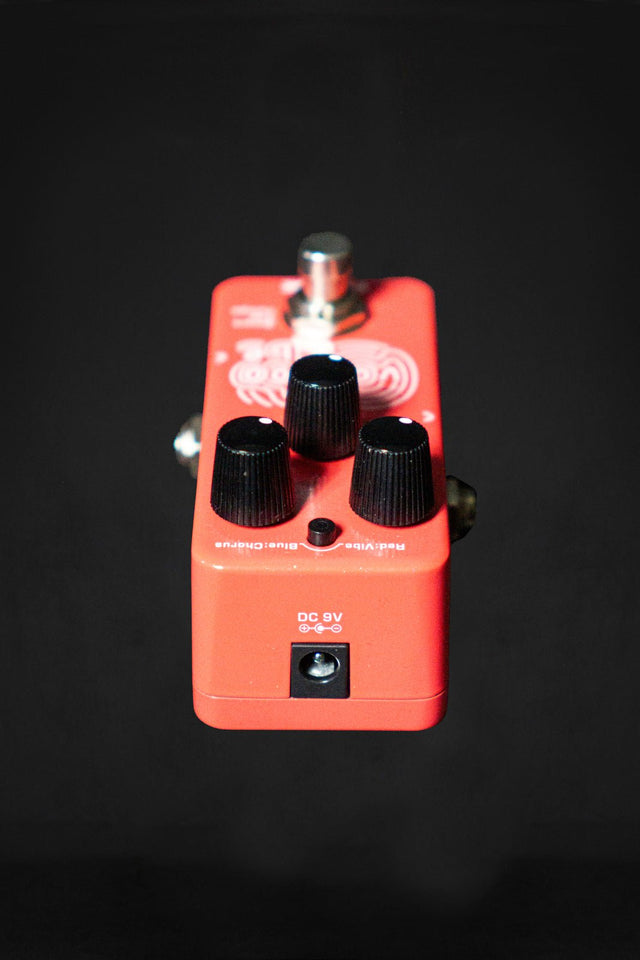

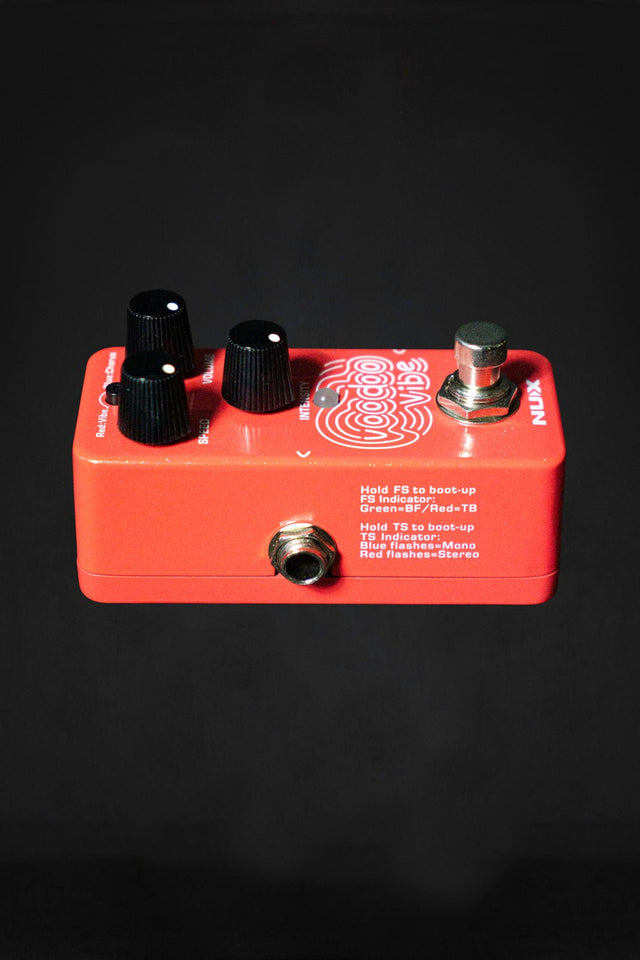

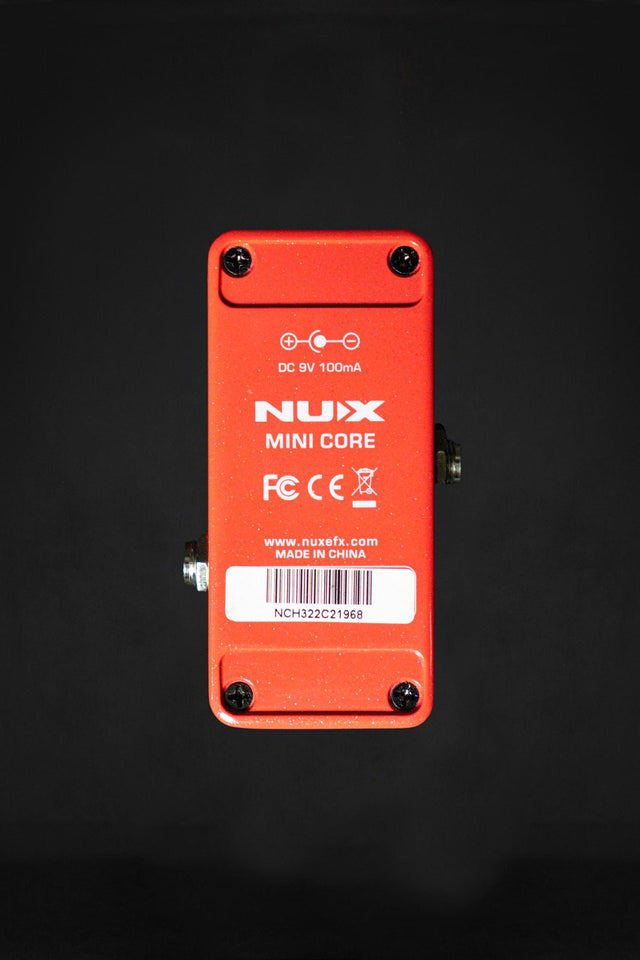

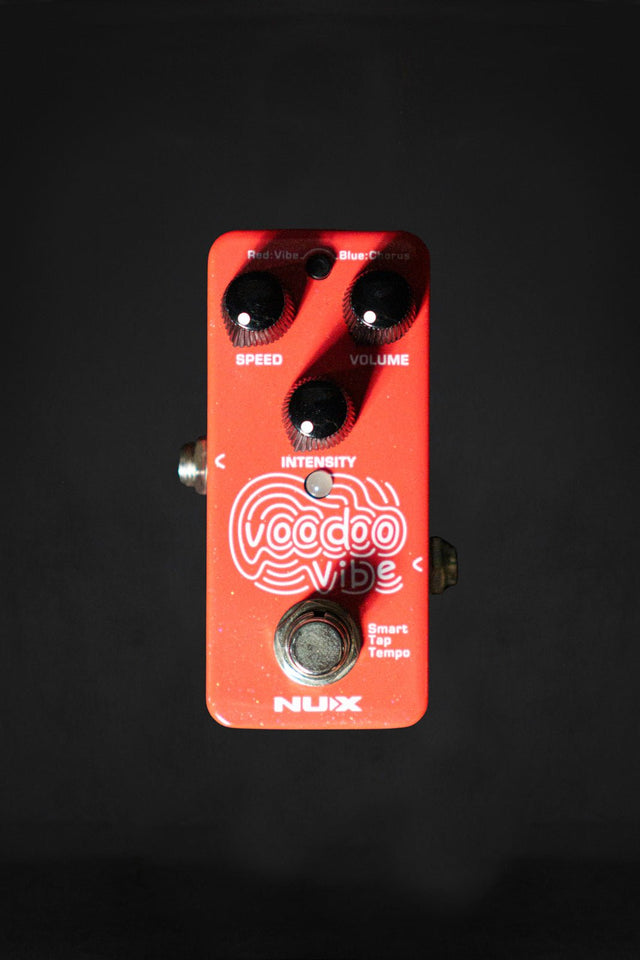

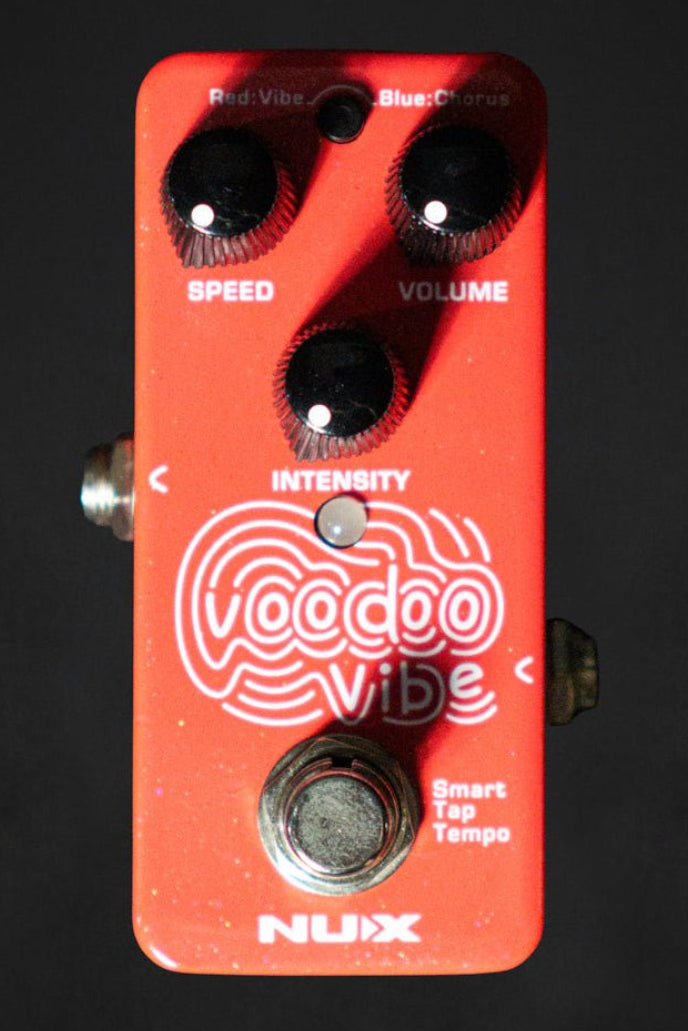

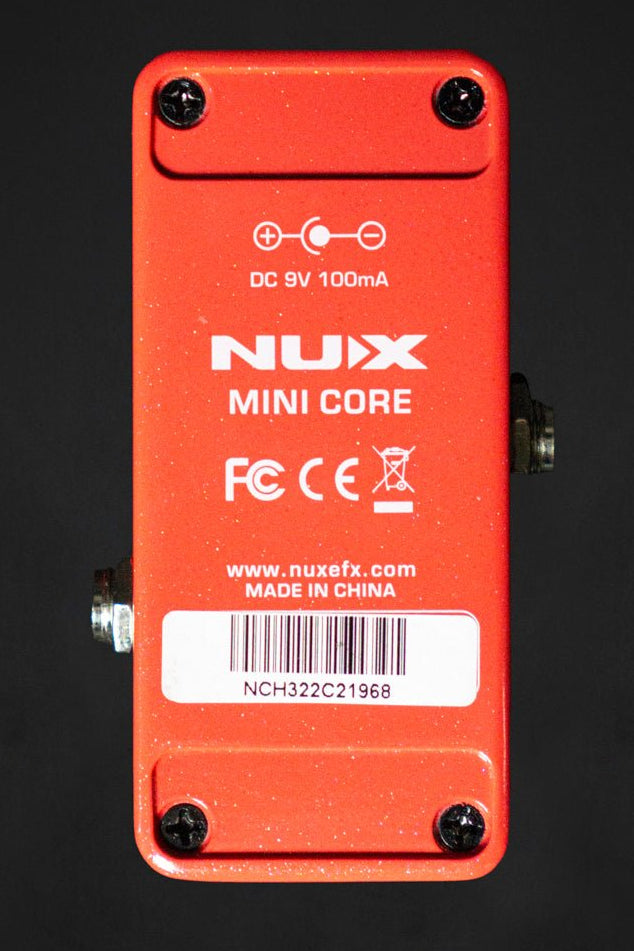

The NU-X Voodoo Vibe (NCH-3) is a compact mini uni-vibe pedal inspired by the Dunlop Uni-Vibe — the effect closely associated with Jimi Hendrix's expressive 1960s performances. Two modes are available, switchable by holding the footswitch: Vibe and Chorus. Smart tap tempo is built in for rate synchronisation.
NU-X's DSP algorithm replicates the character of the original Uni-Vibe circuit while running on a standard 9V supply (the original required 18V). The digital implementation also resolves the volume drop issue present in the original Chorus mode, while retaining the warm, organic feel of the effect.
Intensity knob – In Chorus mode, adjusts the depth of the sweeping effect. In Vibe mode, adjusts the degree of pitch modulation.
Speed knob – Lower settings (counterclockwise) produce slow, sweeping modulation. Higher settings (clockwise) produce a rapid, shimmering pulse.
- 2 modes: Vibe and Chorus (hold footswitch to switch)
- Inspired by the Dunlop Uni-Vibe circuit
- Smart tap tempo
- Runs on 9V DC (original Uni-Vibe required 18V)
- No volume drop in Chorus mode
- 48kHz / 24-bit processing, 103dB dynamic range
- Requires 9V DC, negative tip, 100mA (not included)
Our Thoughts
Our Thoughts
Specs
Specs
- Input Impedance：1MΩ
- Output Impedance：10kΩ
- Dynamic Range: 103 dB
- DSP Processing: 48KHz / 32-bit
- A/D D/A Sampling Rate: 48KHz / 24-bit
- Power：9V DC(Negative tip, Optional ACD-006A adapter)
- Current Draw：less than 100mA
- Dimensions：94(L)X51(W)X53(H)mm
- Weight：175g
